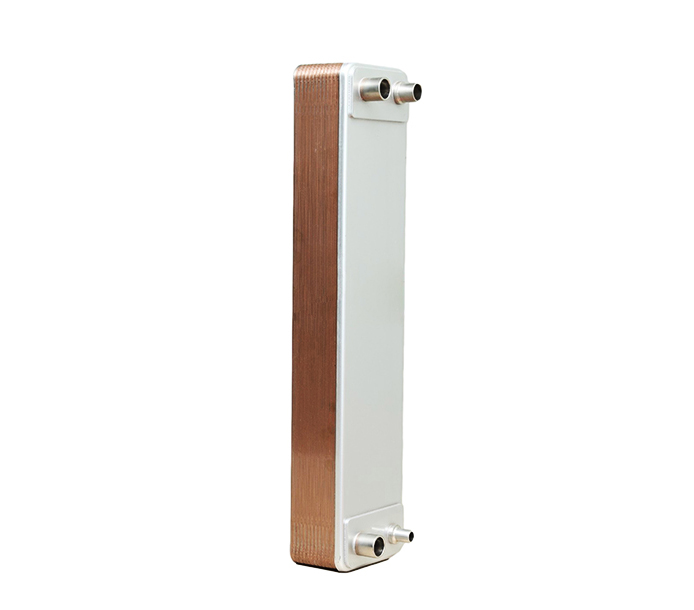

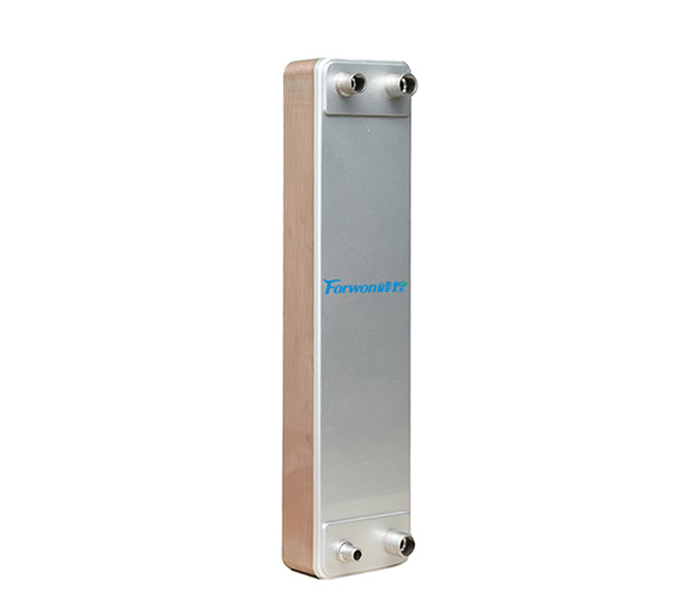

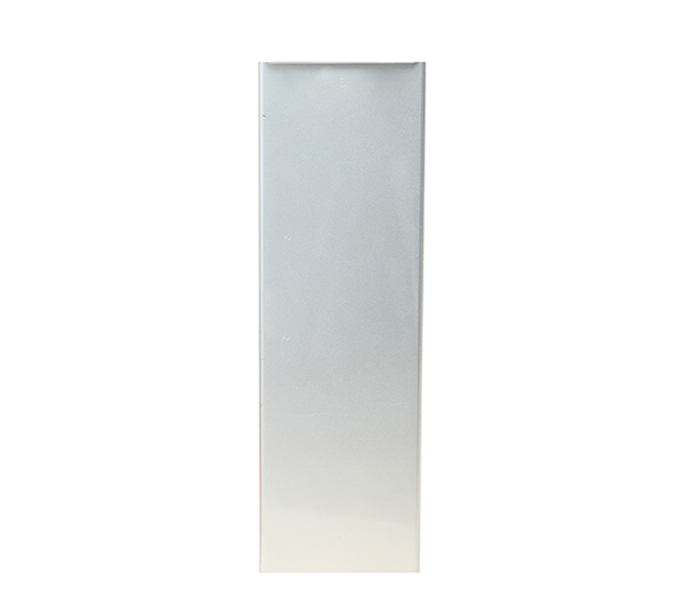

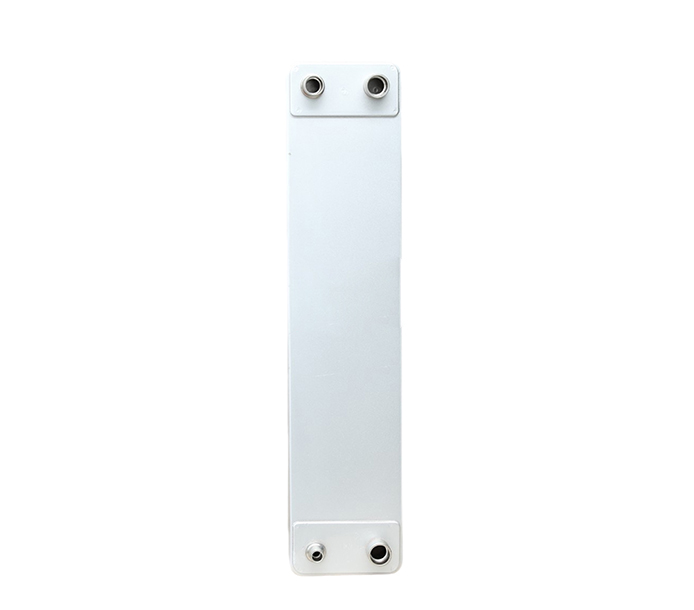

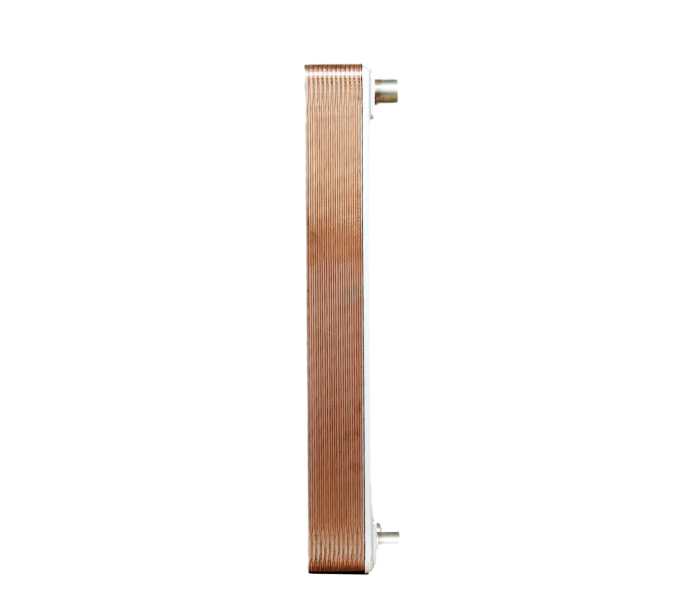

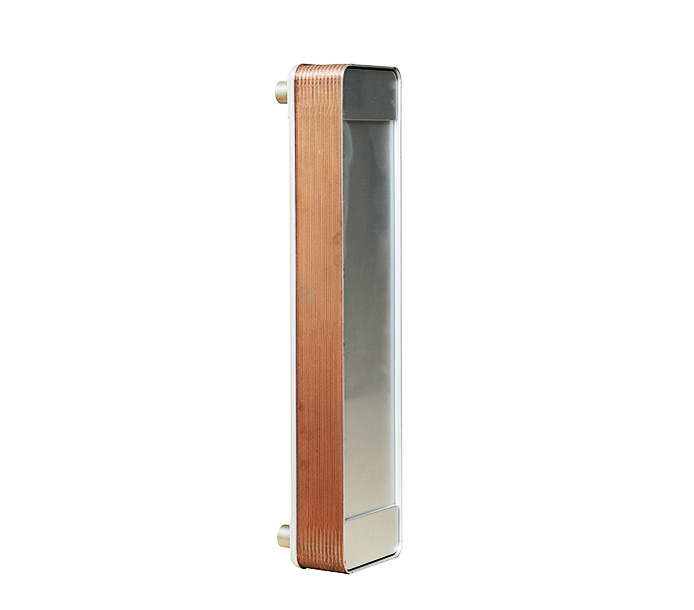

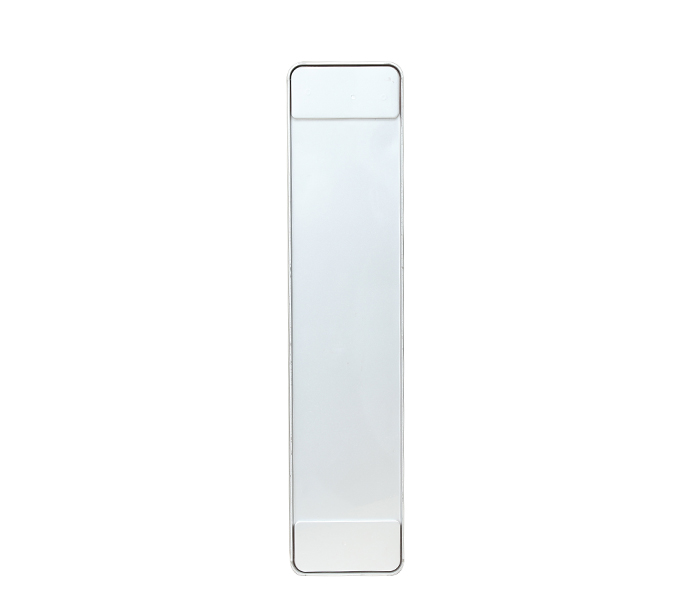

FHC060

FHC060 is a classic model on par with FHC052. It has been verified by the market for more than 10 years, with stable performance and reliable quality. Due to simple but great corrugated design, excellent heat transfer performance, it becomes the ideal model of the current 3HP, 5HP, 6HP, 10HP heat pump systems.
  • Specifications
Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC060 n 14+2.3n 12+2.3n 2.4+0.195n 0.111*1/2n 0.111*1/2（n-2） （n-2）0.060

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 22m3/h
Max plate numbers 150
Max connection size 1" 1/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
