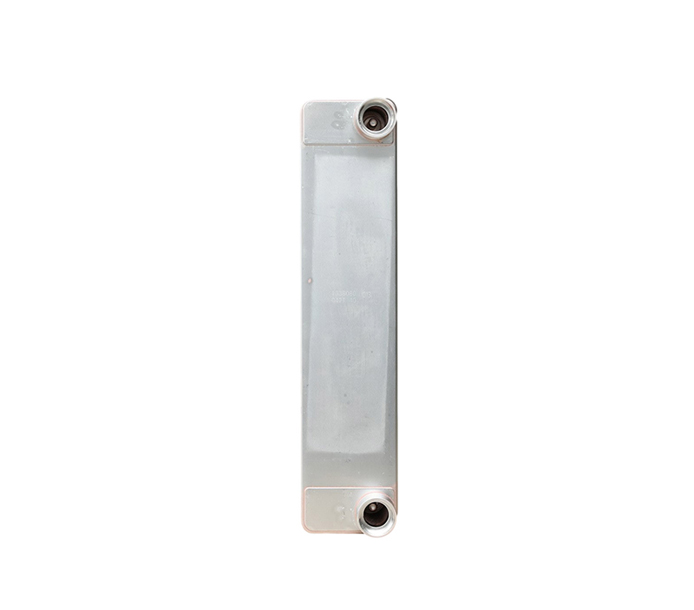

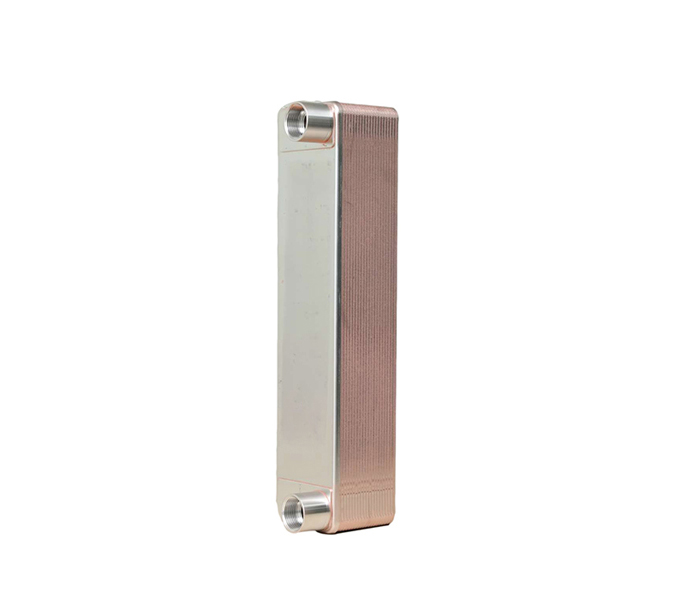

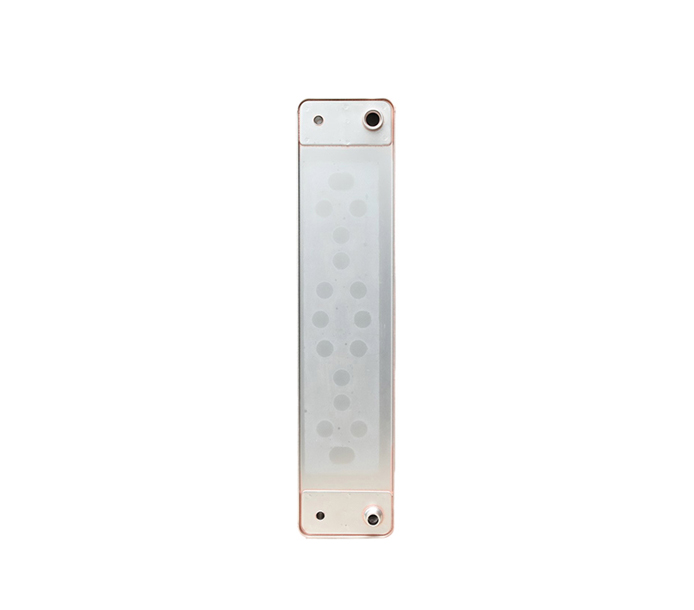

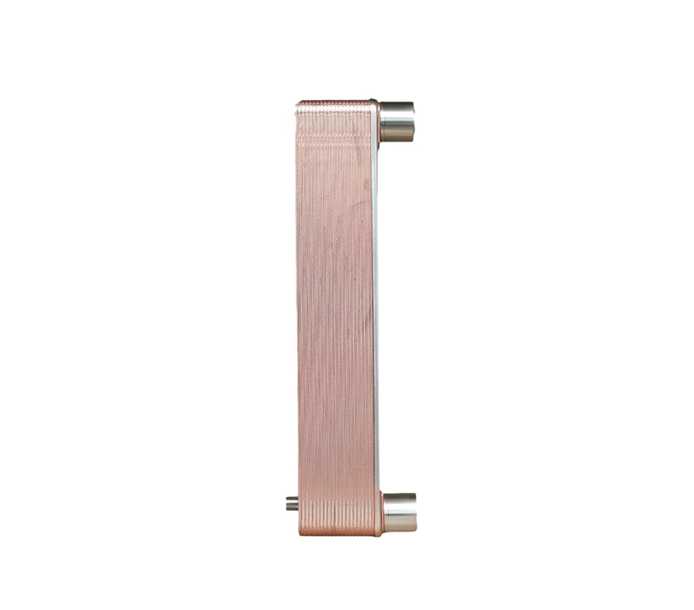

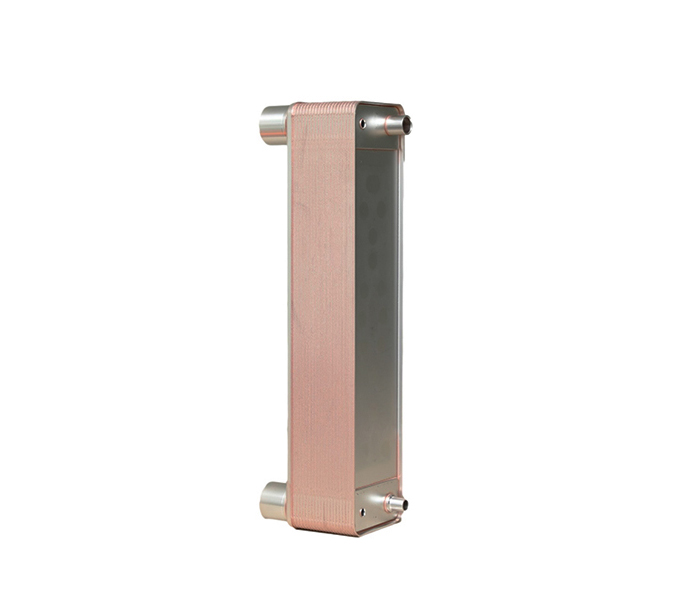

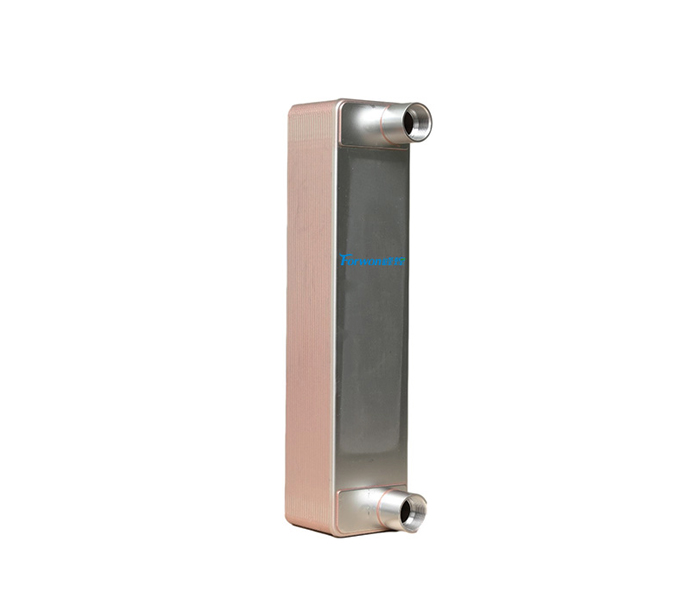

FHC060B

FHC060B is an upgraded model of 060. It has a larger connection center distance, so larger connections are availble for water side and increases the water side flow to meet the individual needs of customers. It can be applied to heat pump systems, chillers, oil coolers, etc.
  • Specifications
Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC060B n 11+2.3n 9+2.3n 2.4+0.195n 0.111*1/2n 0.111*1/2（n-2） （n-2）0.060

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 12m3/h
Max plate numbers 120
Max connection size 1"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
