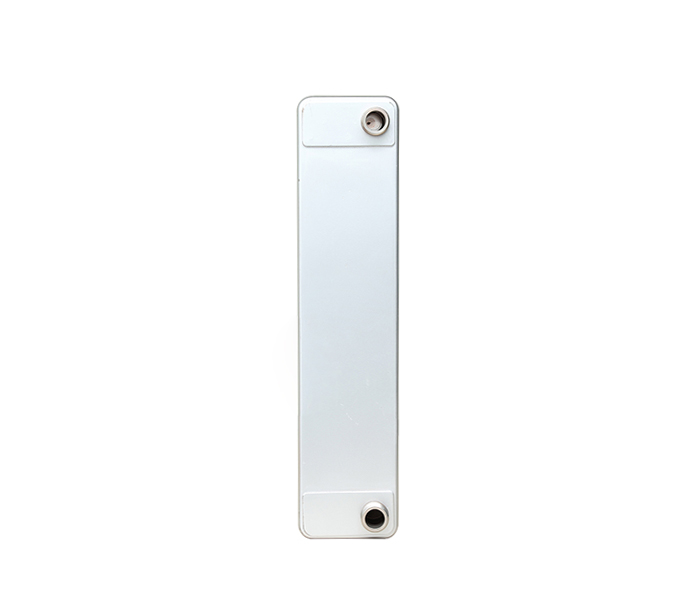

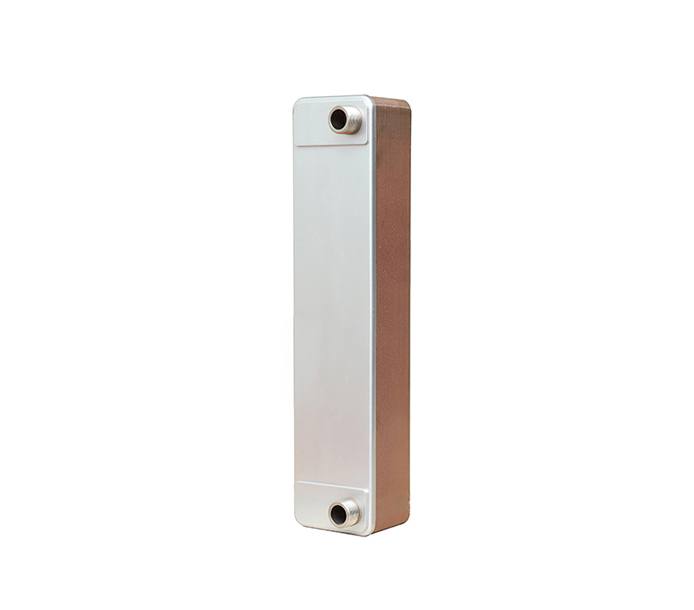

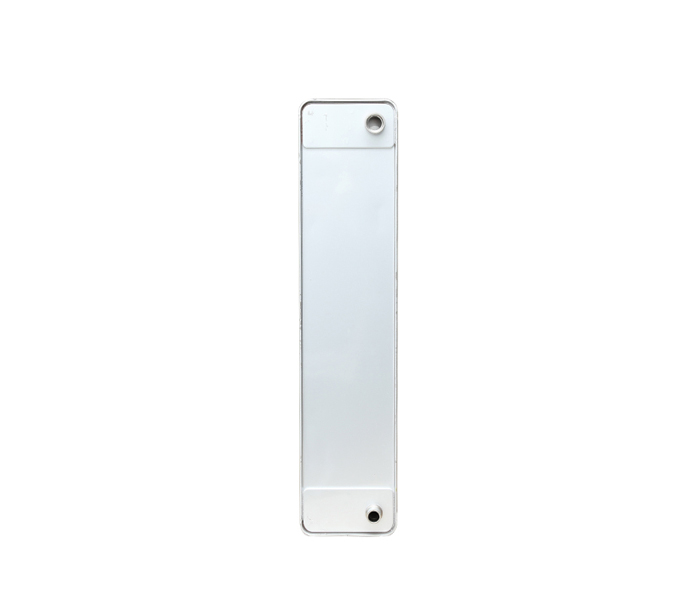

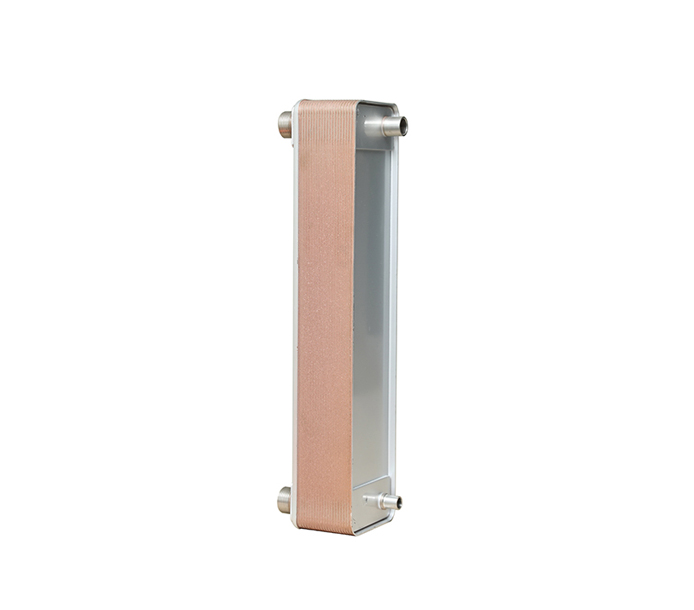

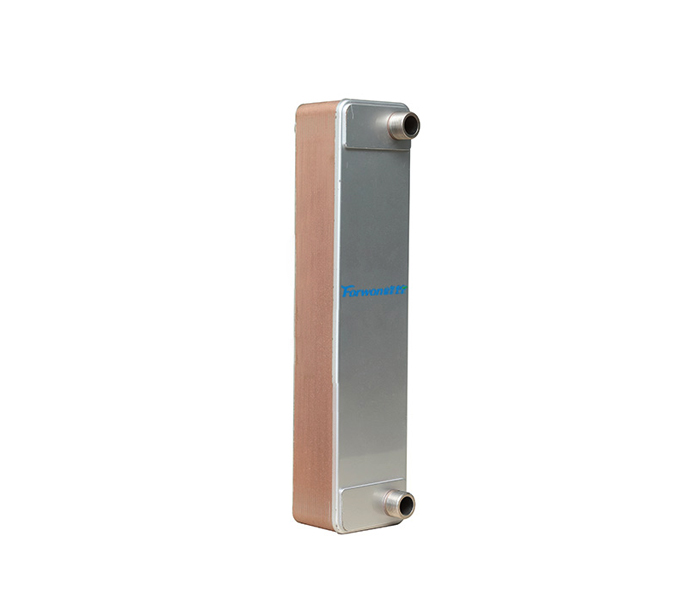

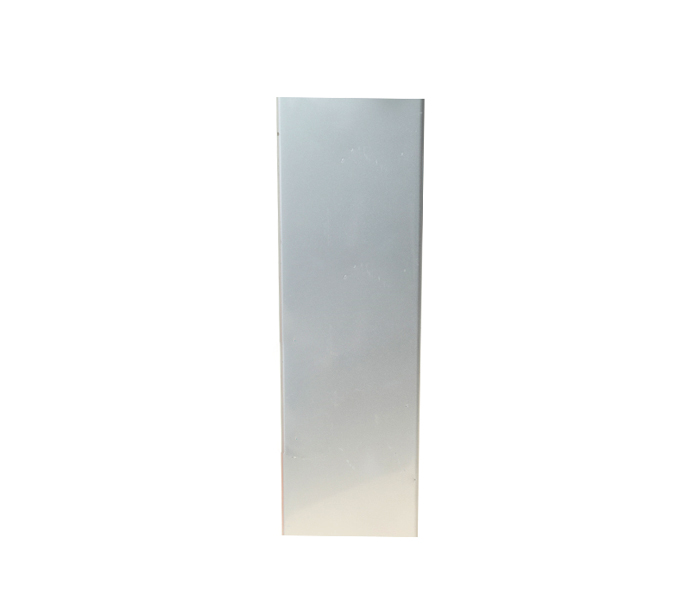

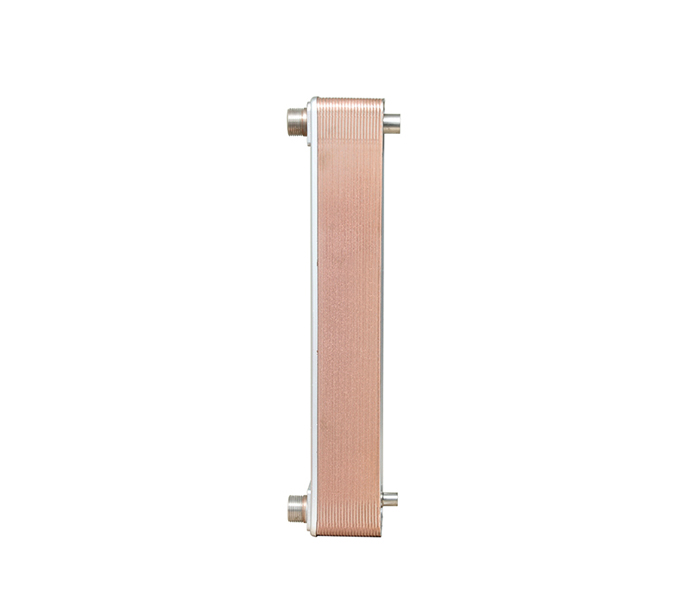

FHC085G

FHC085G is a high-efficiency upgrade model of FHC060. It is especially suitable for application in water-cooled units because of the special W fine corrugated and low wave design and high heat transfer performance.
  • Specifications
Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC085G n 14+1.9n 12.5+1.9n 3.2+0.195n 0.093*1/2n 0.093*1/2（n-2） （n-2）0.060

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 18m3/h
Max plate numbers 150
Max connection size 1" 1/4"
Plate Material SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Distributor Q
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
