FHC110

FHC110 pure dual system BPHE is the market leading product for gas/liquid applications. The special double distribution design makes the distribution of inlet refrigerant high in atomization and more even distribution. It is mainly used as the main BPHE of the modular machine.
  • Specifications

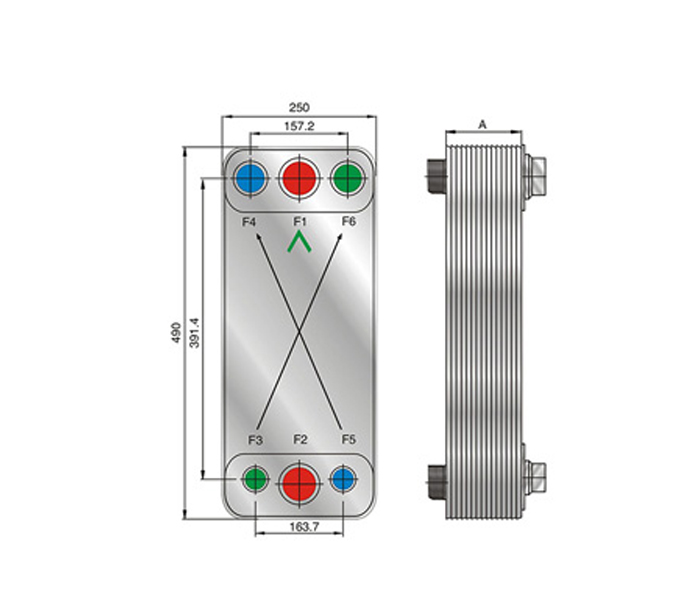

Model Number Design pressure 4.5 Design pressure ≤3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC110 n 15+2.3n 11+2.3n 6.5+0.42n 0.160*1/2n 0.160*1/2（n-2） （n-2）0.110

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 62m3/h
Max plate numbers 198
Max connection size 2" 1/2
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Distributor Q
System type Double system

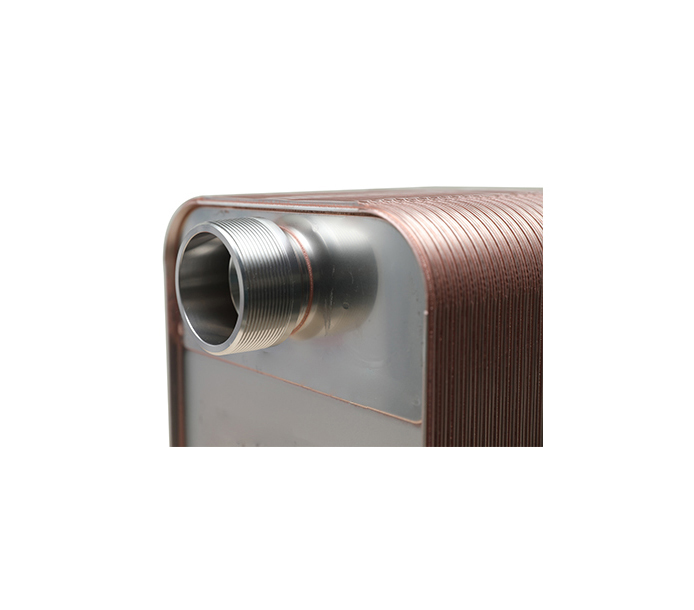

Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
