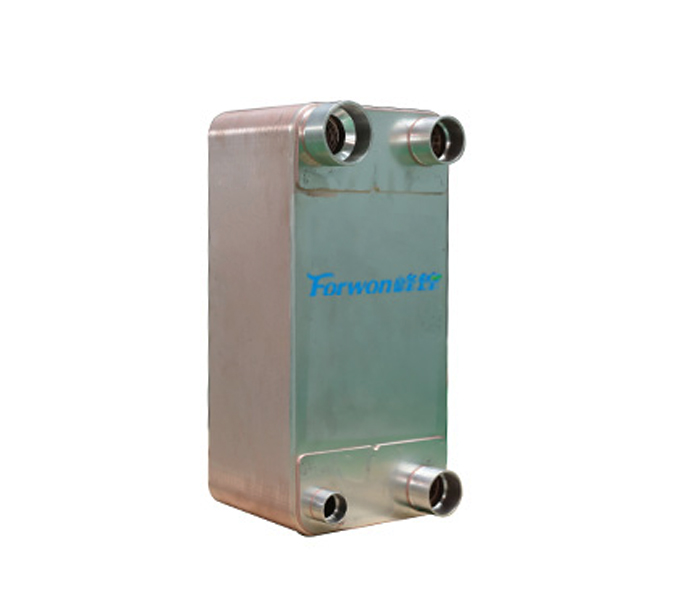

中文简体FHC120G, the high-performance heat exchanger, is specially developed for efficient operation and high heat transfer performance. This heat exchanger is the best choice for many coolers and high-efficiency heat pump systems.
-11.jpg)
-11.jpg)
-10.jpg)
| Model | Number | Design pressure 4.5 | Design pressure ≤3.0 | Weight（kg） | Volume（L） | Heat exchager area（m2） | |
| A（mm） | A（mm） | F1F2side | F3F6=F4F5side | ||||
| FHC120G | n | 15+2.3n | 13+2.3n | 6.5+0.42n | 0.241*1/2n | 0.241*1/2（n-2） | （n-2）0.120 |
| Design pressure(Mpa) | 3.0 / 4.5 |
| Testing pressure(Mpa) | 4.5 / 6.75 |
| Design temperature(℃） | -196~200 |
| Max flow | 40m3/h |
| Max plate numbers | 250 |
| Max connection size | 2" 1/2 |
| Plate Material | SS304/SS316 |
| Connection Material | SS304 |
| Brazing Material | 99.9% pure copper/Steel |
| Plate type | H |
| Distributor | Q |
| Connection type | Threaded, Solder, Flange |
| Approval | CE, UL, PED, ISO9001, ISO14001 |
| Packing | EPE foam,carton or polywood case |
| Mounting Bracket(Optional) | Studs, bracket, feet |
