FHC030Z

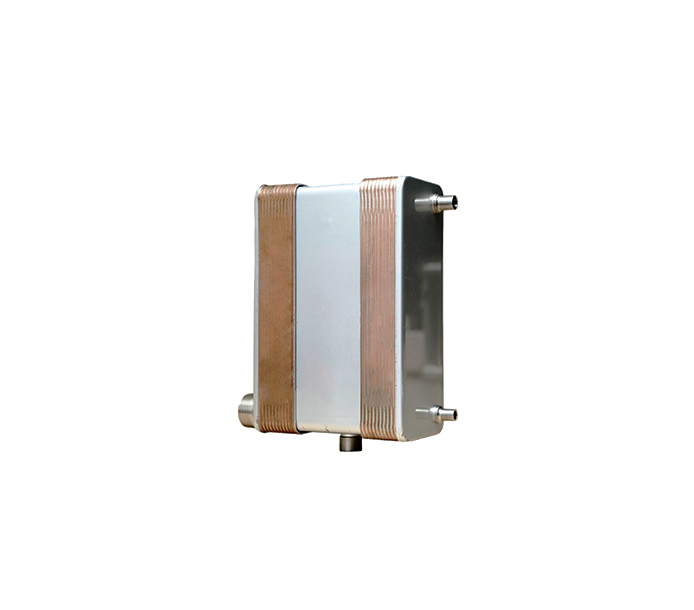

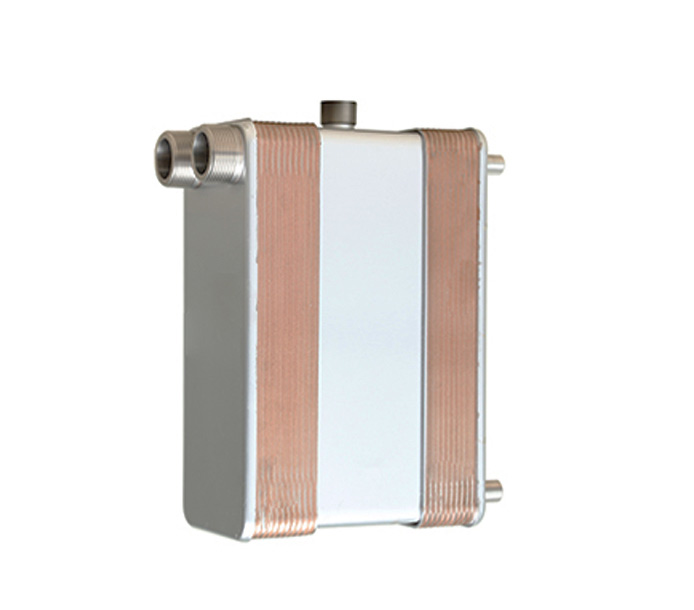

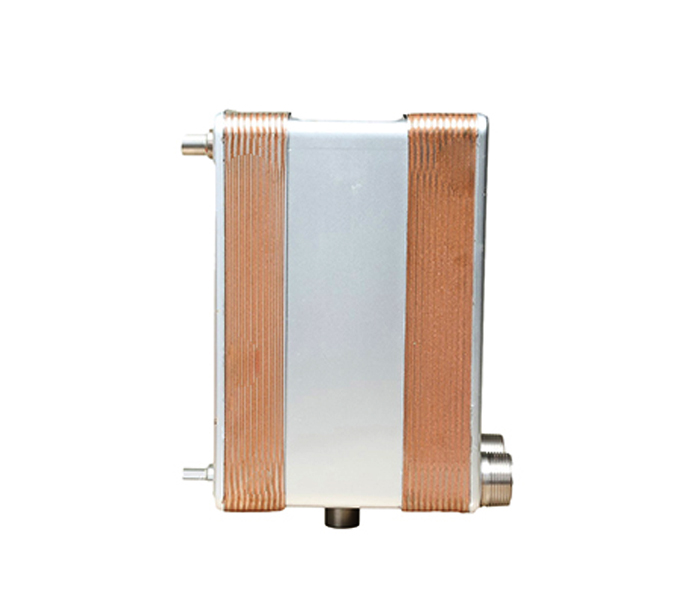

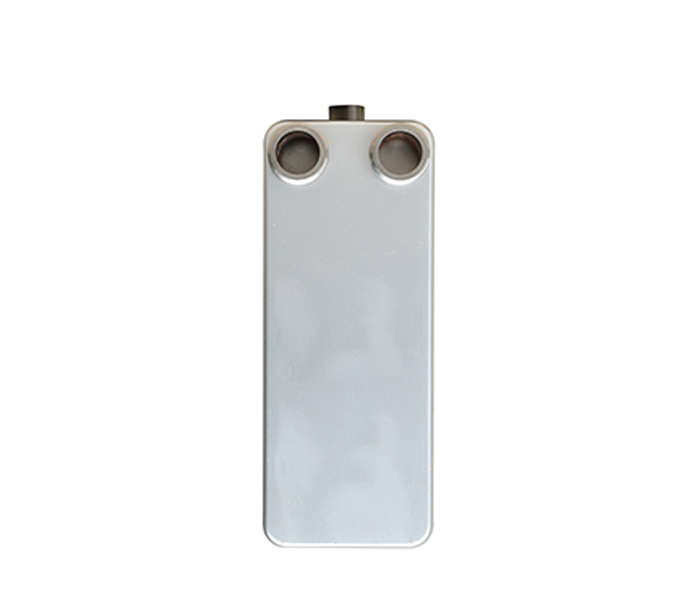

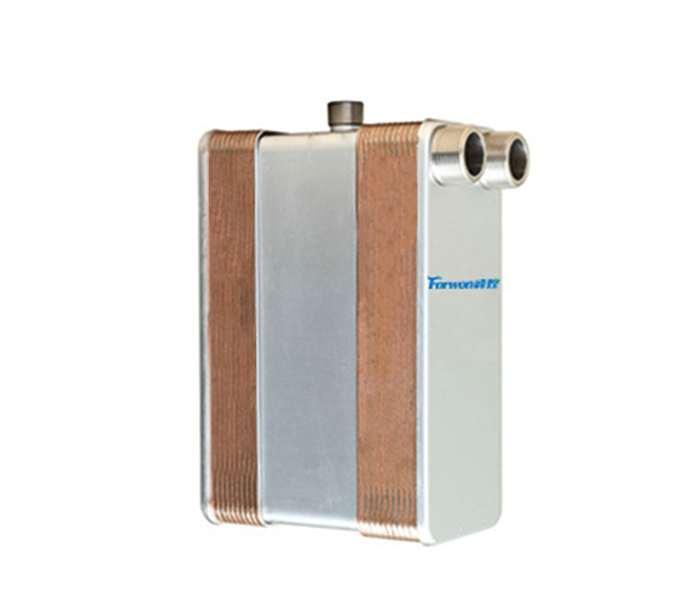

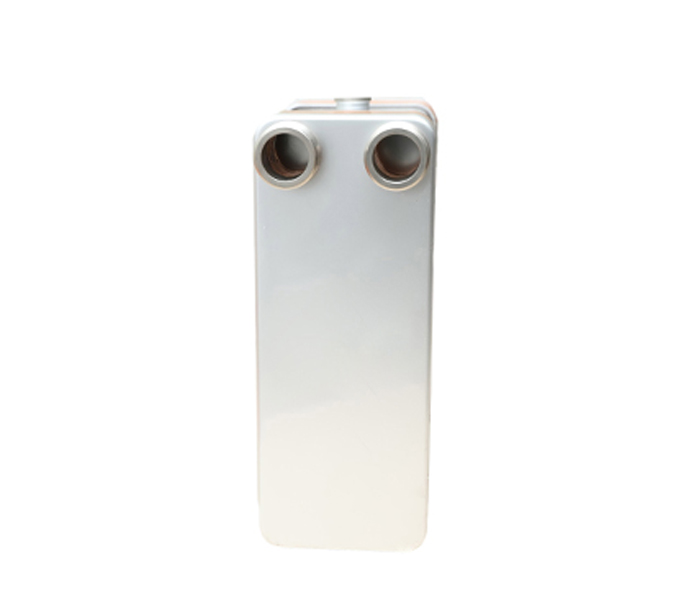

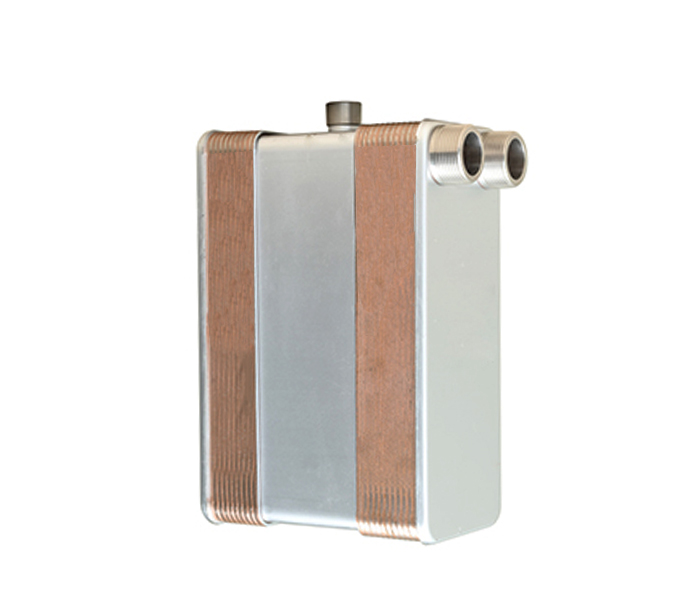

FHC030Z is 3 in 1 air dryer brazed plate heat exchanger integrates precooler, strainer and evaporator. The installation is much easier and quicker.
  • Specifications
Technical Dimension Data
Model FHC030Z
Temperature 200℃
Max working pressure ( Air ) 16
Max working pressure ( Refrigerant )Min test 30
pressure ( Air ) 24
Min test pressure ( Refrigerant ) 45

Air flow Modeel Heat Reecovery Evaporator C(mm) E(mm) B(mm) D(mm) Refrigerant Connection Air Connection
Nm3/h Scfm
111 65 FHC030Z 15 13 300 120 250 70 1/2"/5/8" 1-1/8"
147 86 FHC030Z 17 15 300 120 250 70 1/2"/5/8" 1-1/8"
182 107 FHC030Z 21 19 300 120 250 70 1/2"/5/8" 1-1/8"
213 125 FHC030Z 25 21 300 120 250 70 1/2"/5/8" 1-1/8"
244 143 FHC030Z 31 27 300 120 250 70 1/2"/5/8" 1-1/8"
284 167 FHC030Z 35 31 300 120 250 70 1/2"/5/8" 1-1/8"
325 190 FHC030Z 43 39 300 120 250 70 1/2"/5/8" 1-1/8"
400 235 FHC030Z 55 51 300 120 250 70 1/2"/5/8" 1-1/8"
