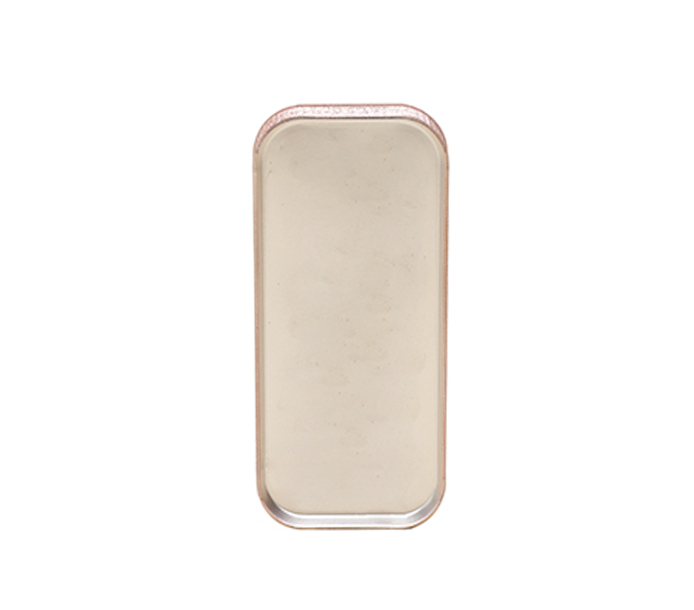

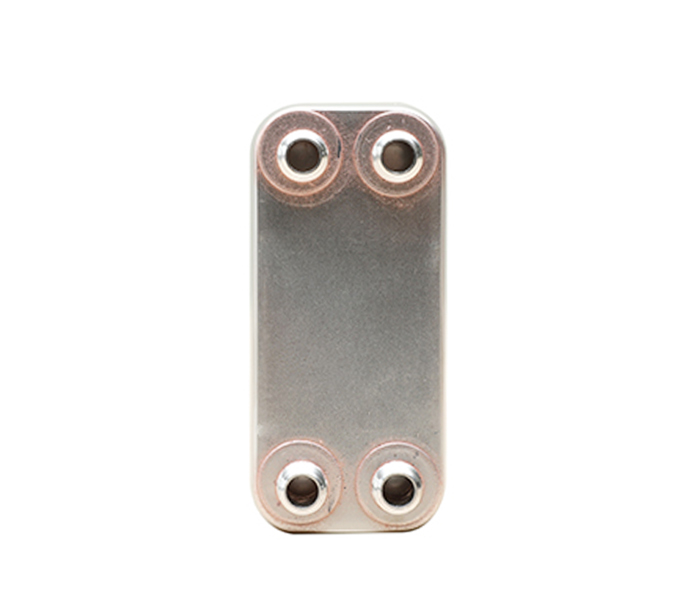

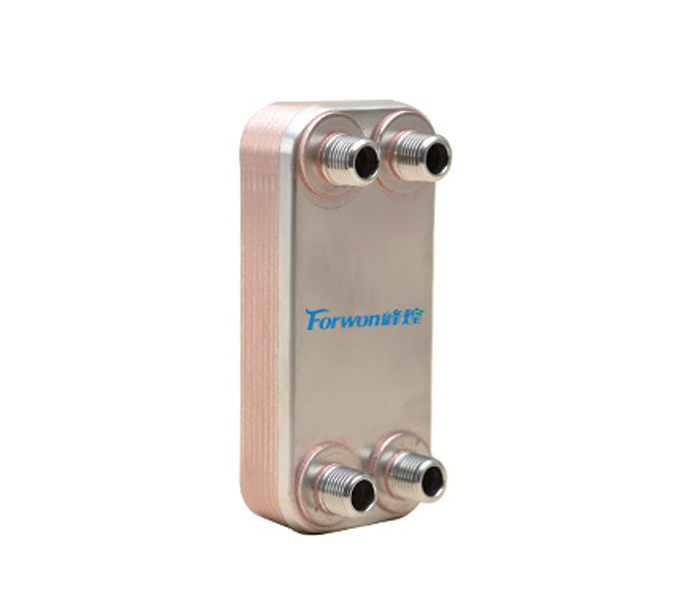

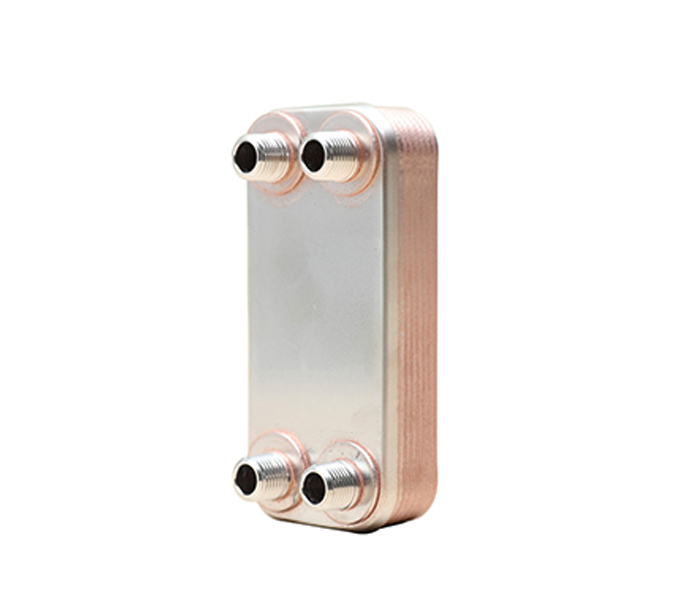

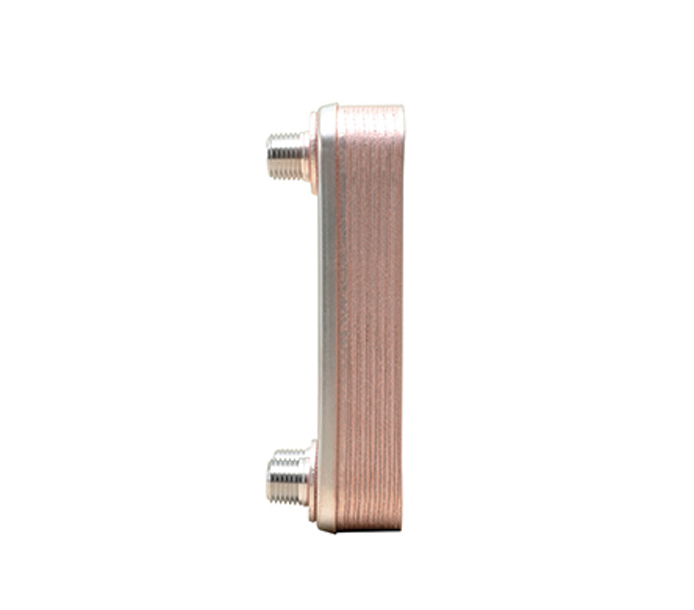

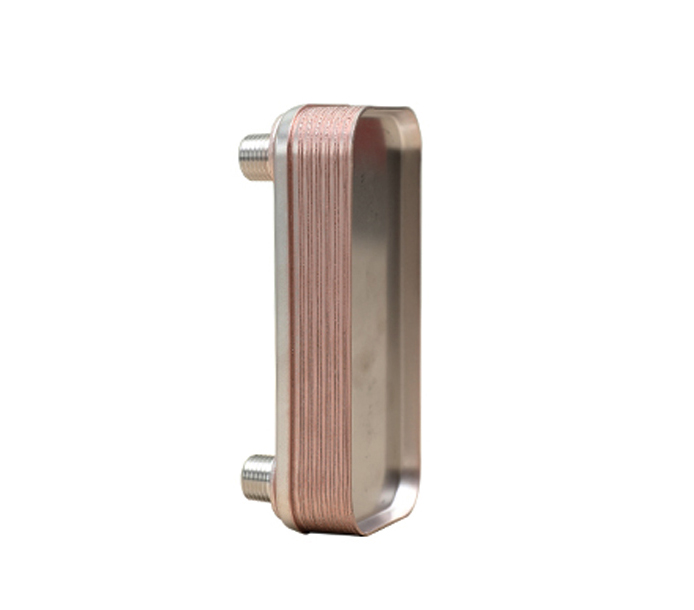

FHC003G

FHC003G is a small flow, multi-purpose product that can be used in systems with small space and high heat transfer performance. The product is small in size and easy to install. This makes it particularly suitable for use in small-hp air conditioners, heat pump system economizers or water coolers.
  • Specifications
Model Number Size Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） F1F2side F3F4side
FHC003G n 8+1.3n 0.11+0.016n 0.006*1/2n 0.006*1/2（n-2） （n-2）0.003

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 2m3/h
Max plate numbers 60
Max connection size 1/2"
Plate Material SS304
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
