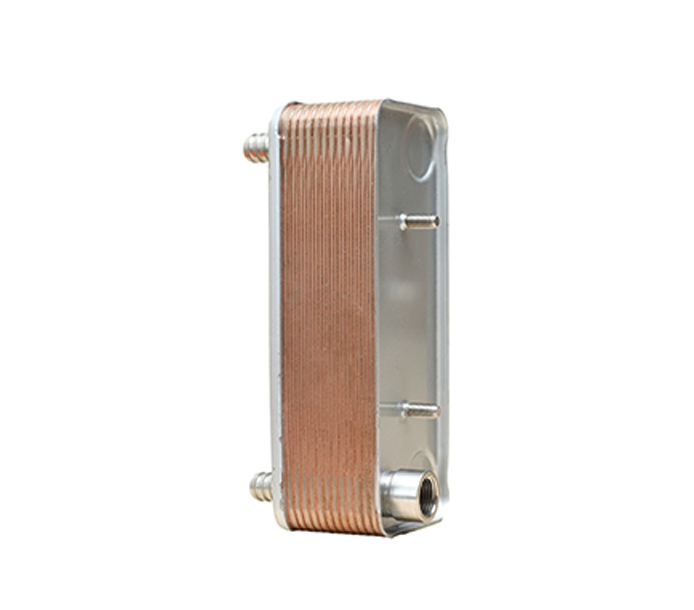

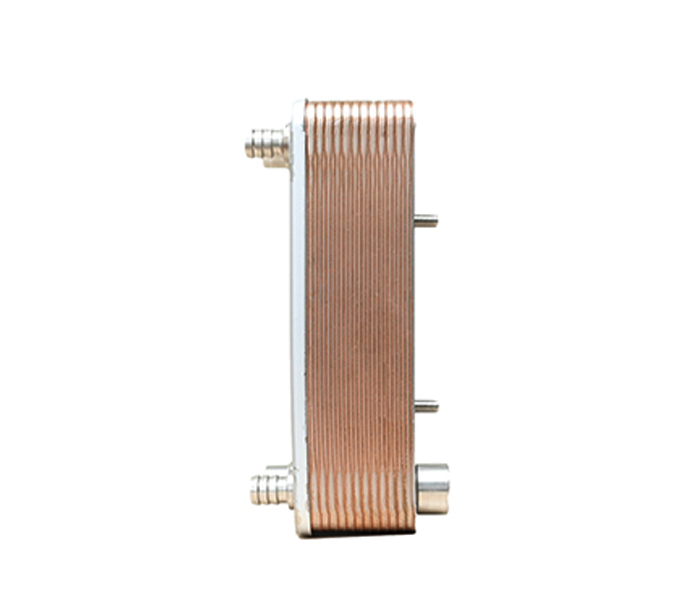

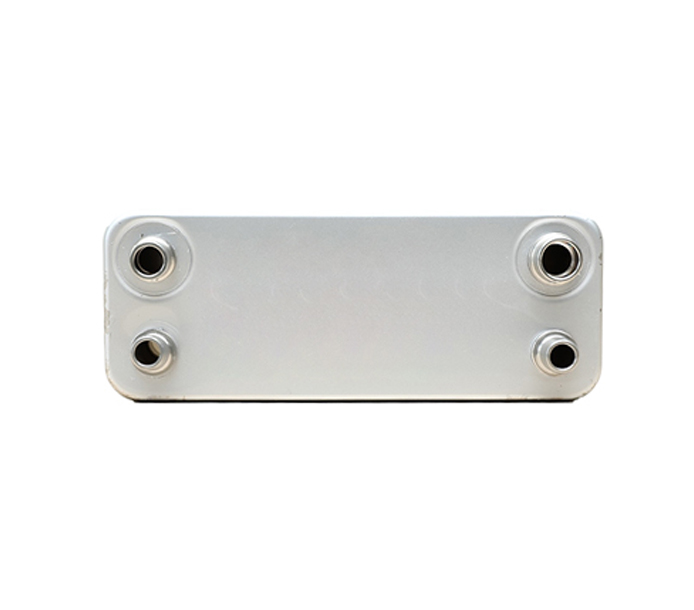

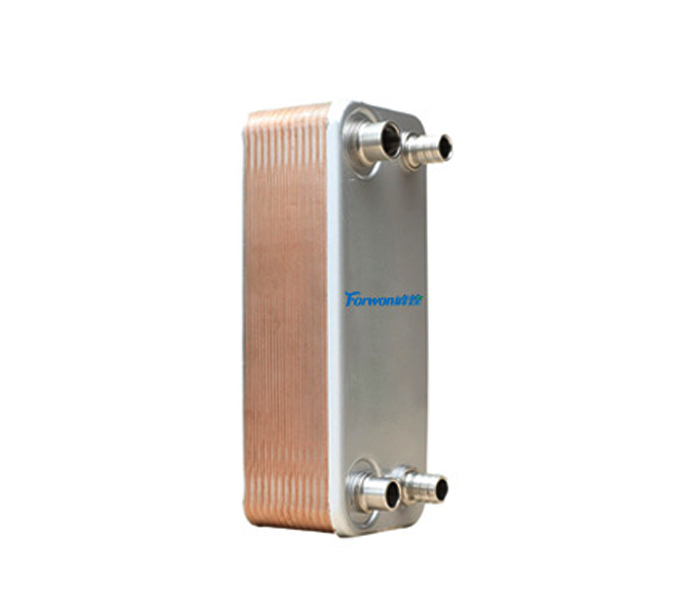

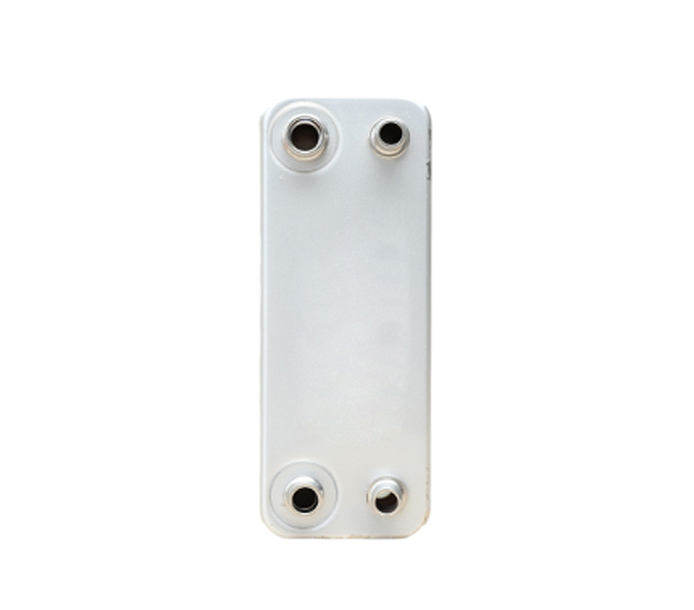

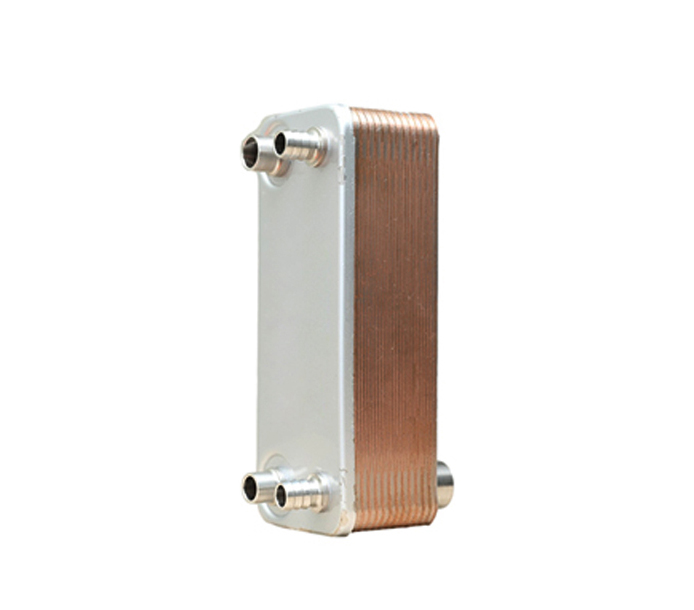

中文简体The compact FHC018 is a heat exchanger designed to combine high heat transfer performance with low pressure drop. With the optimized design of plate geometry, it provides efficient solutions for heat pump and refrigeration applications.
-4.jpg?imageView2/2/w/600/h/600/format/jp2/q/100)
-4.jpg)
.jpg)
-3.jpg)
-5.jpg)
-3.jpg)
-3.jpg)

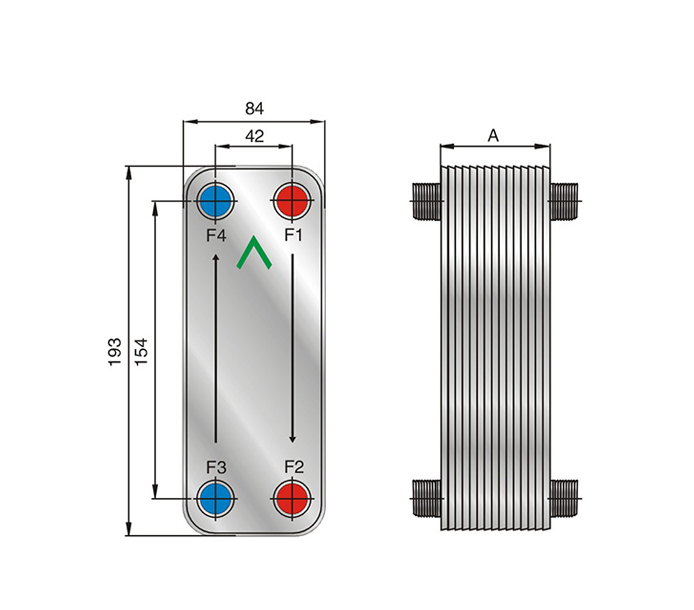

| Model | Number | Design pressure 4.5 | Design pressure ≤3.0 | Weight（kg） | Volume（L） | Heat exchager area（m2） | |
| A（mm） | A（mm） | F1F2side | F3F4side | ||||
| FHC018 | n | 11+2.3n | 9+2.3n | 1.1+0.055n | 0.036*1/2n | 0.036*1/2（n-2） | （n-2）0.018 |
| Design pressure(Mpa) | 3.0 / 4.5 |
| Testing pressure(Mpa) | 4.5 / 6.75 |
| Design temperature(℃） | -196~200 |
| Max flow | 6m3/h |
| Max plate numbers | 60 |
| Max connection size | 3/4" |
| Plate Material | SS304/SS316 |
| Connection Material | SS304 |
| Brazing Material | 99.9% pure copper/Steel |
| Plate type | H |
| Connection type | Threaded, Solder, Flange |
| Approval | CE, UL, PED, ISO9001, ISO14001 |
| Packing | EPE foam,carton or polywood case |
| Mounting Bracket(Optional) | Studs, bracket, feet |
