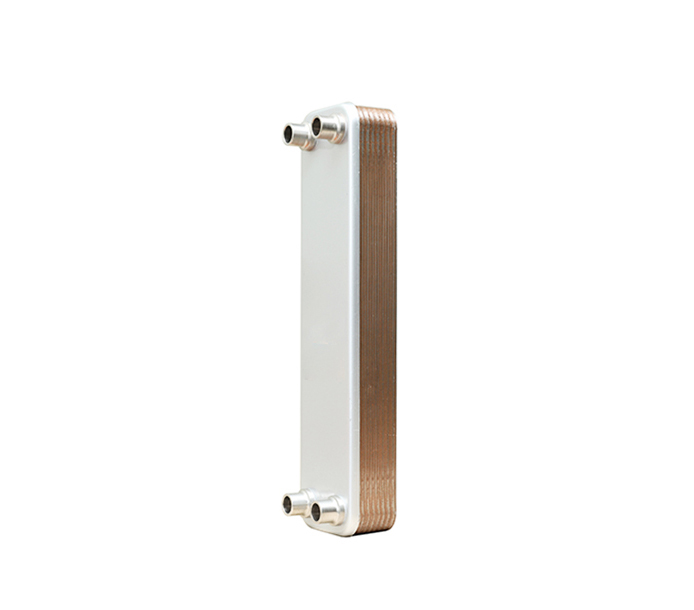

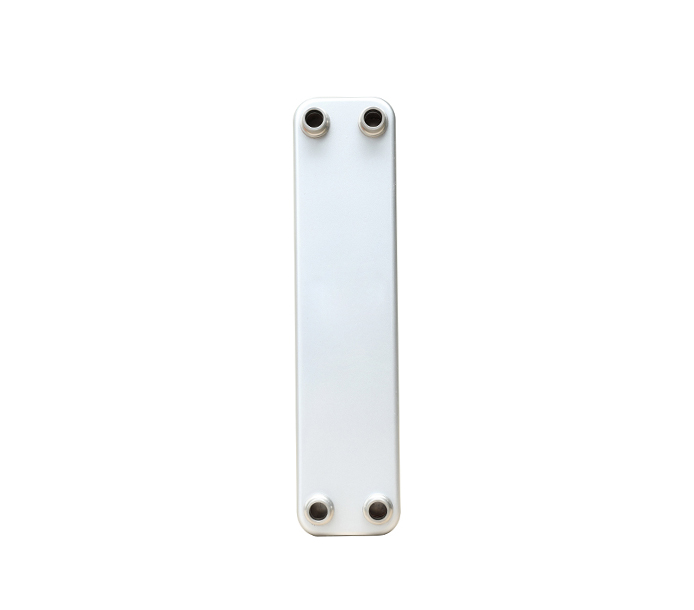

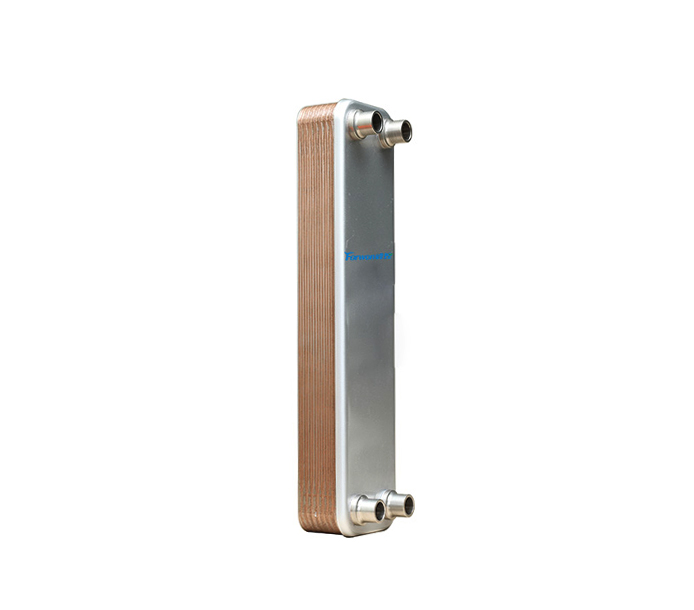

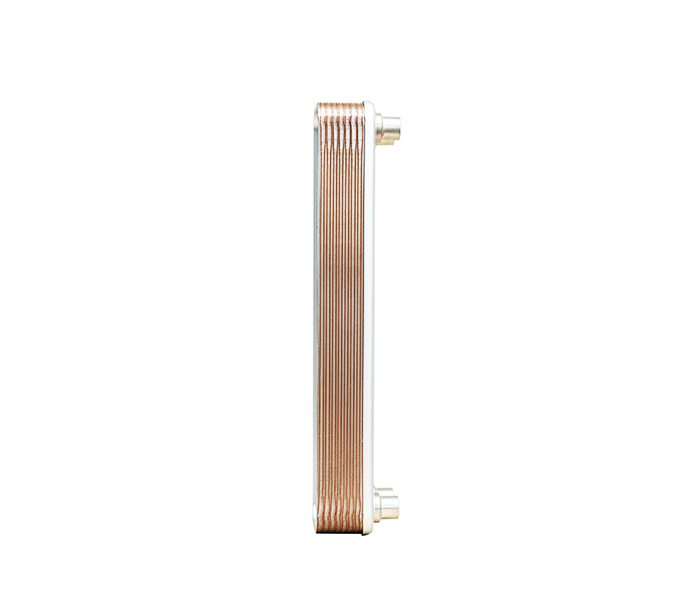

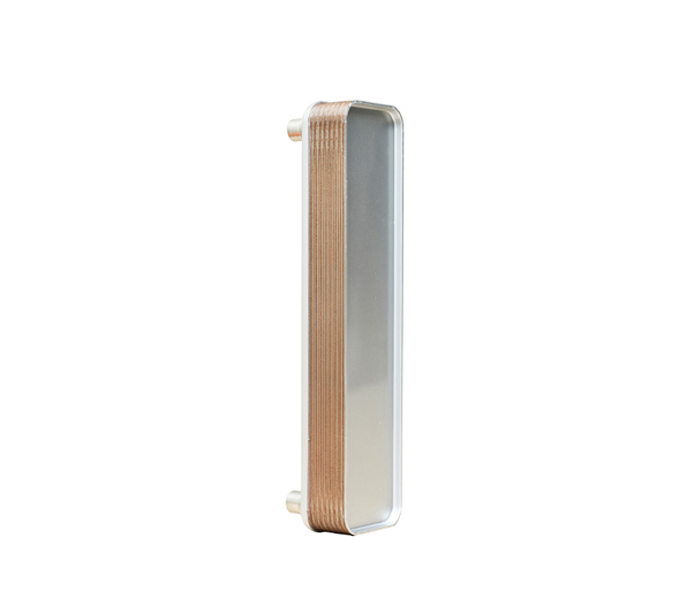

FHC022

FHC022 is a very classic heat exchanger of medium size with low pressure drop and high pressure. It can be used in single-phase and two-phase flow applications. The special design of this BPHE means that it can be used in heat pump systems and industrial areas.
  • Specifications

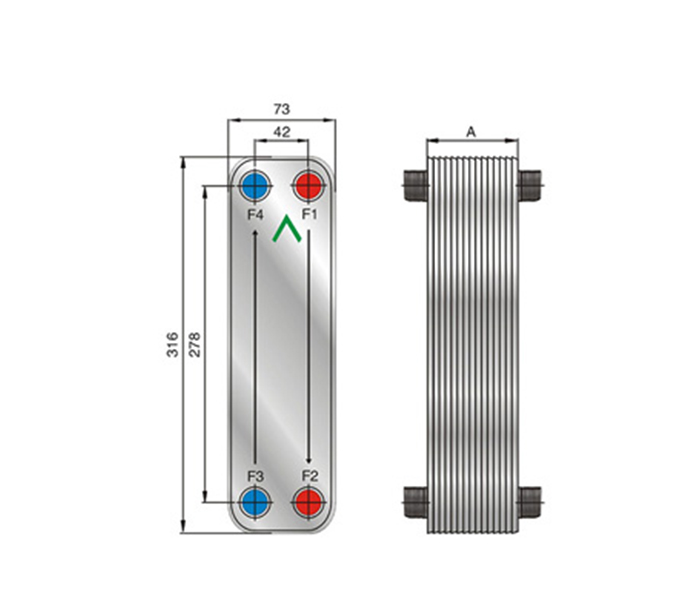

Model Number Design pressure 4.5 Design pressure ＜3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC022 n 11+2.3n 9+2.3n 0.7+0.07n 0.040*1/2n 0.040*1/2（n-2） （n-2）0.022

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 4m3/h
Max plate numbers 60
Max connection size 3/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H / M / L
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
