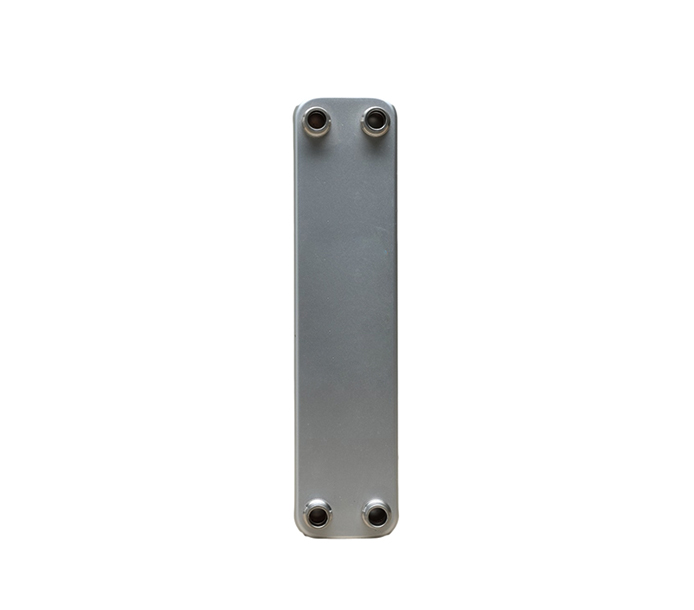

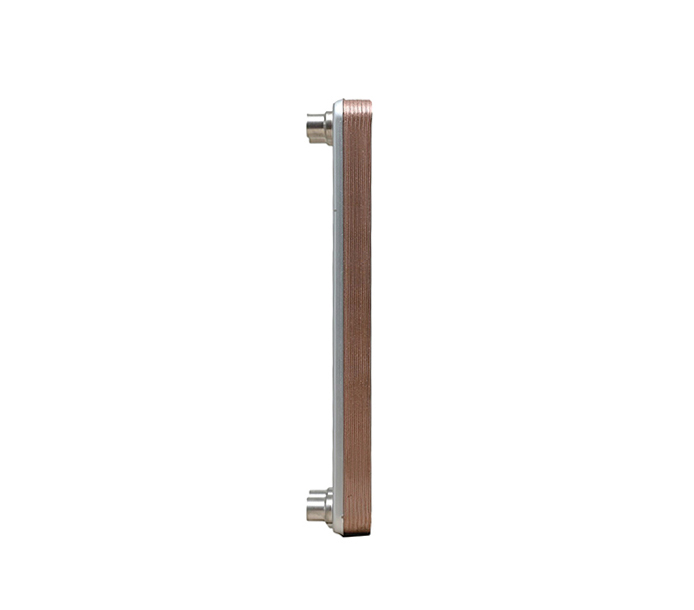

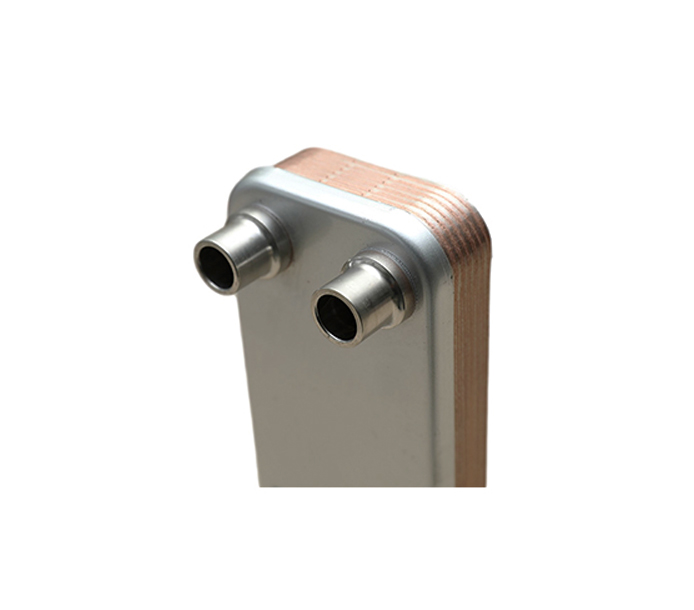

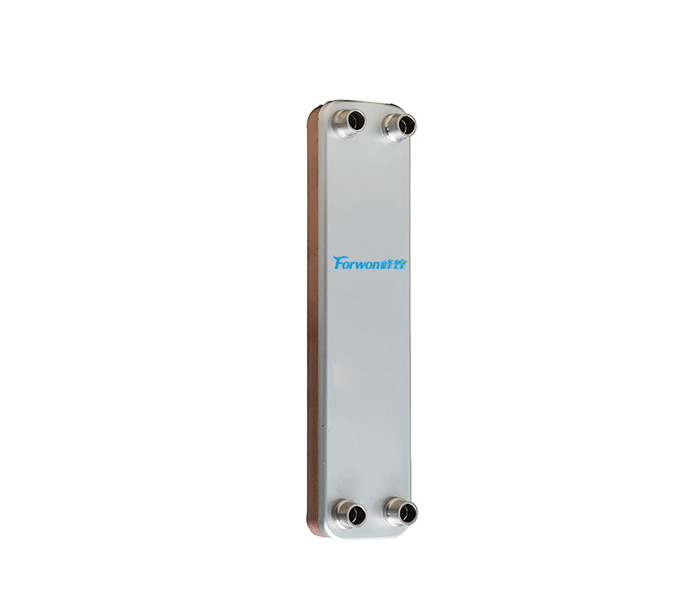

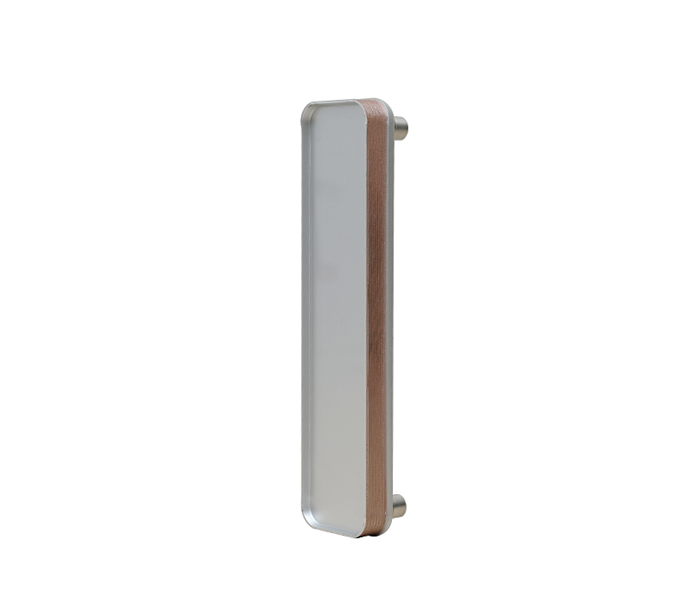

FHC022G

FHC022G is an upgraded model of FHC022. Compared with 022, it has higher heat transfer performance which reduce the plate numbers and cost. It is used in heat pump system economizers, multi-line system economizers and modular machine economizers.
  • Specifications
Model Number Design pressure 4.5 Design pressure ＜3.0 Weight（kg） Volume（L） Heat exchager area（m2）
A（mm） A（mm） F1F2side F3F4side
FHC022G n 9+1.5n 9+1.5n 0.7+0.05n 0.025*1/2n 0.025*1/2（n-2） （n-2）0.022

Design pressure(Mpa) 3.0 / 4.5
Testing pressure(Mpa) 4.5 / 6.75
Design temperature(℃）  -196~200
Max flow 4m3/h
Max plate numbers 80
Max connection size 3/4"
Plate Material SS304/SS316
Connection Material SS304
Brazing Material 99.9% pure copper/Steel
Plate type H
Connection type Threaded, Solder, Flange
Approval CE, UL, PED, ISO9001, ISO14001
Packing EPE foam,carton or polywood case
Mounting Bracket(Optional) Studs, bracket, feet
