中文简体Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.
-2.jpg?imageView2/2/w/600/h/600/format/jp2/q/100)
-12.jpg)
-15.jpg)
-10.jpg)

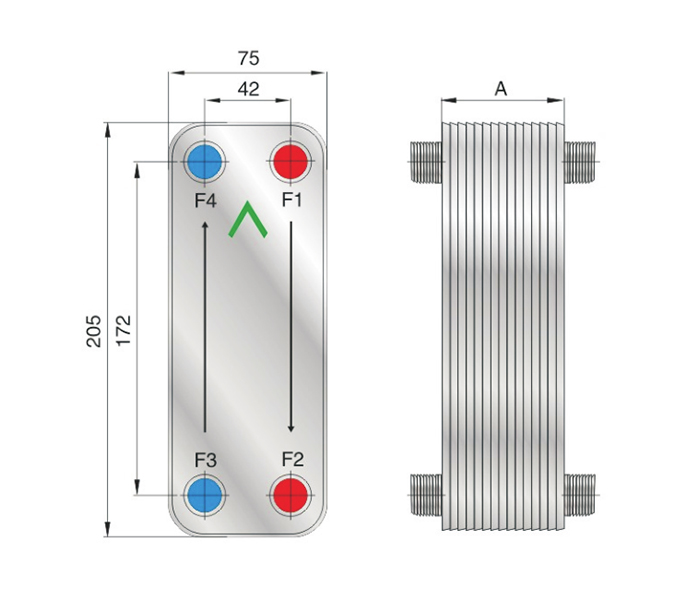

| Model | Number | Design pressure 4.5 | Design pressure ＜3.0 | Weight（kg） | Volume（L） | Heat exchange area（m2） | |
| A（mm） | A（mm） | F1F2side | F3F4side | ||||
| FHC014G | n | 9+1.5n | 9+1.5n | 0.5+0.04n | 0.015*1/2n | 0.015*1/2（n-2） | （n-2）0.014 |
| Design pressure(Mpa) | 3.0 / 4.5 |
| Testing pressure(Mpa) | 4.5 / 6.75 |
| Design temperature(℃） | -196~200 |
| Max flow | 4m3/h |
| Max plate numbers | 60 |
| Max connection size | 3/4" |
| Plate Material | SS304/SS316 |
| Connection Material | SS304 |
| Brazing Material | 99.9% pure copper/Steel |
| Plate type | H / M / L |
| Connection type | Threaded, Solder, Flange |
| Approval | CE, UL, PED, ISO9001, ISO14001 |
| Packing | EPE foam,carton or polywood case |
| Mounting Bracket(Optional) | Studs, bracket, feet |
