中文简体Products are widely used in central air-conditioning unit evaporator and condenser, economizer, heat pump, district heating boiler, metallurgical chemical power industry heat recovery, cooler, cold and dry machines.
.jpg)

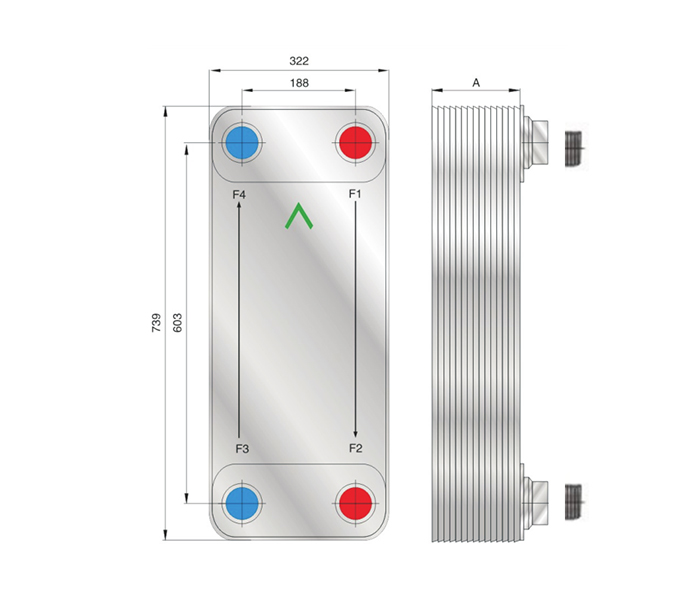

| Model |
Number of plates |
Design pressure 4.5 | Design pressure ≤3.0 | weight(kg) | Volume(L) | Heat exchange area (m2) | |
| A(mm) | A(mm) | F1F2side | F2F3side | ||||
| FHC210 | n | 17+2.85n | 13+2.85n | 13+0.82n | 0.40*1/2n | 0.40*1/2(n-2) | (n-2)0.210 |
| Design pressure(Mpa) | 2.5 / 3.0 |
| Testing pressure(Mpa) | 3.7 / 4.5 |
| Design temperature(℃） | -196~200 |
| Max flow | 105m3/h |
| Max plate numbers | 250 |
| Max connection size | 4" |
| Plate Material | SS304/SS316 |
| Connection Material | SS304 |
| Brazing Material | 99.9% pure copper/Steel |
| Plate type | H |
| Distributor | Q |
| Connection type | Threaded, Solder, Flange |
| Approval | CE, UL, PED, ISO9001, ISO14001 |
| Packing | EPE foam,carton or polywood case |
| Mounting Bracket(Optional) | Studs, bracket, feet |
